Introductions
AA5000 Scanning Probe Microscope is Angstrom most innovated model. AA5000 features a full coverage of SPM techniques-STM, AFM, LFM Conductive AFM, MFM, EFM, Environmental Control SPM and Nano-Processing... AA5000 is designed to provide images of atomic scale up to 100 micrometer. With a Digital Signal Processor (DSP) TMS320C642 inside the system, AA5000 can handle complicated multi-functional tasks efficiently. A real-time operating system of SPM/DNA is embedded in AA5000 SPM system.
Features
• Multi-function: AFM, LFM, STM, Conductive AFM, MFM and EFM;
• Multi-Mode: Contacting Mode, Tapping Mode, Phase Imaging and Lifting Mode;
• SPM can be in liquid;
• Real-time temperature and humidity detecting;
• Force Analysis: I-V Curve, I-Z Curve, Force Curve and Amplitude Curve;
• Nano-Processing and manipulating: Lithography Mode and Vector Scan Mode;
• Fast automatically tip-engaging
• Simply change of the tip holder to switch between STM and AFM;
• Full digital control, auto system status recognition;
• Adjustable lightening inside
• With a 32-bit Digital Signal Processor (DSP) from Texas Instruments, 4.8 billion times of calculation per second can be achieved;
• Controller and Computer connected through a 10M/100M Fast Ethernet;
• Large sample size: up to diameter 45mm, 30mm thick;
• Online Control Software and offline Image Processing Software for Windows;
• Trace-Retrace scan, Back-Forward scan;
• Online real-time 3D image;
• Automatically Brightness and Contrast refresh;
• Data can be loaded out for further analysis;
• Nano-Movie function: Continuous data collection, storage and replay;
• Multi-Analysis: Granularity and Roughness;
• Tip Estimation and Image Re-construction;
• Modularized design for convenience of maintenance and future upgrade;
• Second display monitor and optical microscope system attachable;

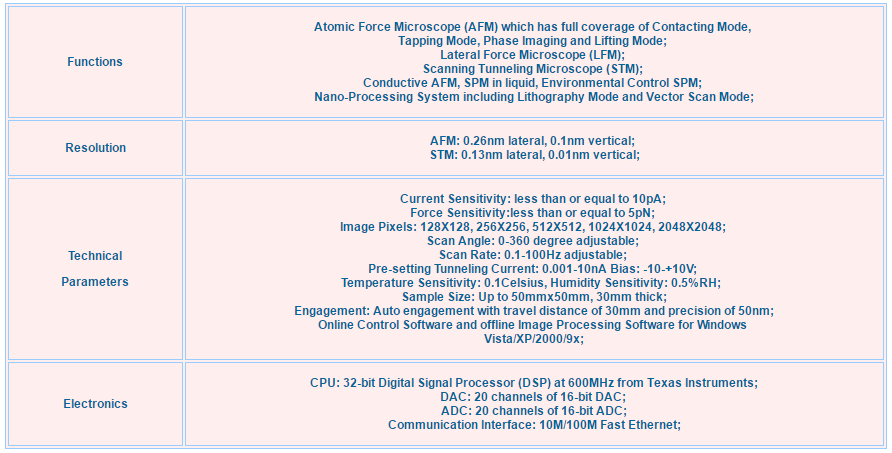

Specifications
